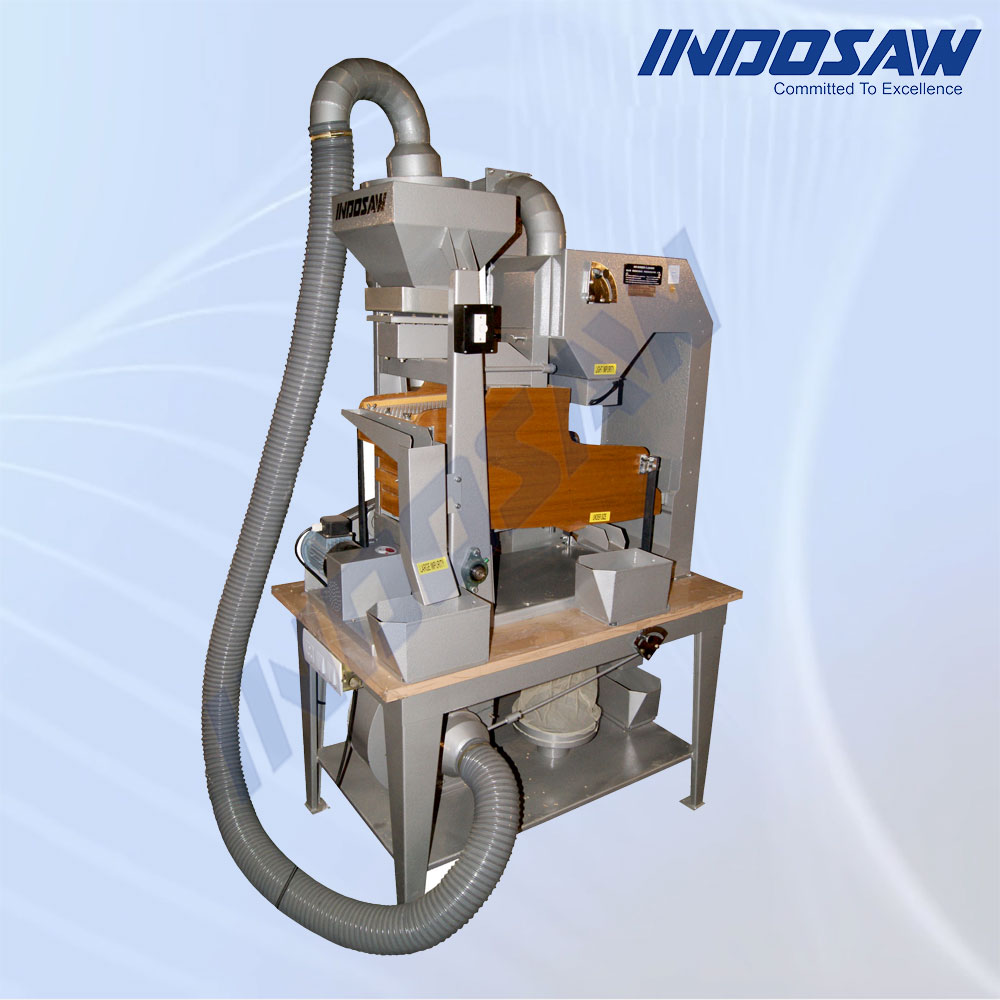

Seed/Grain Grader (Air Screen Cleaner Type)
Item Code : 6837
Description:
The Indosaw range of laboratory machines are high quality machine built to industrial standards. This machine is designed for quick cleaning and grading of small seed batches cleaning in laboratory sample rooms etc. It features an eccentric cradle with interchangeable screens for removing oversized and undersized grains.
Clean seeds are collected from the bottom screen, ensuring uniformity in weight and size. A built-in blower system provides pre- and post-aspiration to eliminate light impurities. For dust-free operation, it includes a cyclone collector and bag filter.
Salient Features
Specifications
Applications
Salient Features
- Rubber ball screen cleaning is provided for most effective cleaning.
- It gives five separation i.e. Light Impurities, Large Impurities, Dust, undersize Impurities & Final Graded Material.
- It is provided with a primary cyclone collector and secondary bag filter for dustless operation.
- AC drive to accurately increase or decrease screen agitation.
- Easy clean-down when changing from one product to another.
- High quality laminated wood with a covering specifically chosen to suit the product to treated.
Specifications
| Cleaning capacity | : 150 kg/hr (based on wheat) |
| Dimensions | : 950 x 1100 x 1950 mm (L x W x H) (approx.) |
| Main Screen size | : 250 x 500 mm (approx.) |
| Prescalping Screen size | : 250 x 250 mm (approx.) |
| Motor for blower | : 1 HP, 2810 rpm, single phase. |
| Operating Voltage | : 220V, 50Hz single phase AC |
| Motor for sieve boat | : 90W, three Phase (Built in AC drive) |
| Fabrication | : CNC machining for fabrication of all metal component . |
| Drive | : AC drive to increase or decrease screen agitation. |
| Screens | : Three nos. of rapidly changeable screens, two for oversized material whereas one for undersized material. |
| Screen cleaning | : Rubber balls screen cleaning system. |
| Aspiration | : Pre-aspiration and final aspiration with a primary cyclone collector and secondary bag filter for dustless operation. |
| Output | : 5 types of separations : large impurity, under size impurity, light impurity, dust and final graded material. |
Applications
Seeds/Grains
This machine is suitable for all types of free-flowing grains, including:
- Wheat, Rice/Paddy, Maize (Corn), Barley, Oats, Sorghum, Chickpeas, Pigeon Peas (Arhar/Tur), Green Gram (Moong), Lentils, Soybeans
General Uses of Lab Model Air Screen Cleaner
- Pre-cleaning and fine cleaning of seeds and grains in laboratory settings
- Testing screen combinations for commercial-scale cleaning operations
- Seed certification and R&D trials
- Training and demonstration in agricultural universities and technical institutes
- Quality control and grading trials in breeding stations, seed labs, and research farms
- Separation of oversize, undersize, and light impurities using screen and aspiration system
