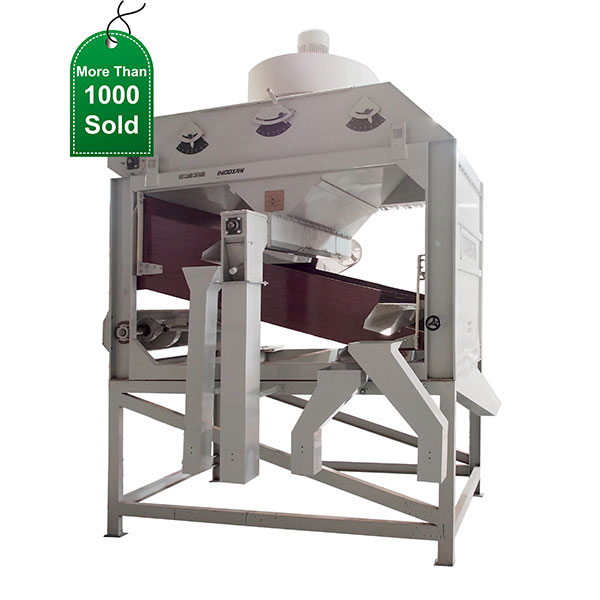

Seed/Grain Pre Cleaner
Item Code : IPC-2
Description:
The Pre cleaners are used for rough cleaning of seeds and grain in the plant. Raw or uncleaned seed/grain received from production sites before they are finely cleaned. The Seeds and grains have a lot of impurities like sticks, husk, inert matter, dead insects , stones, dust and plant parts when it is harvested and threshed. To clean it partially it is fed to Pre Cleaner where it is cleaned at high speed separating most unwanted material like light chaff, stalk, soil, infested seeds, immature seeds, under size seeds, oversized seeds etc. so that the Fine Cleaner can do its basic function of Fine cleaning and proper size grading. Indosaw Pre Cleaner has many special features like three screen layers, wooden deck, top mounted blower, low noise, sturdy and strong machine, screw conveyor for removal of impurities.
CNC machine is used for high precision in manufacturing and so the operational performance is highly efficient.
- Three screen layers for better cleaning.
- Use of CNC machine for fabrication of all sheet metal components.
- Sieve boad made of compressed plywood that absorb very well.
- Effective screen cleaning by bouncing rubber balls system.
- Less maintenance due to structurally stable machine.
- Seeds/grains are separated in five different categories i.e. Light Impurities, Heavy Impurities, Dust, Undersize Impurities & graded good seeds/grains.
- Auger takes out light impurities smoothly without blower suction loss.
- Soft wooden sieve deck and screen frame handle seed gently and smoothly.
| Model | IPC-2 | IPC-3 | IPC-4 | IPC-6.25 |
| Capacity (wheat basis) | 1 Ton/hr | 2 Tons/hr | 4-5 Tons/hr | 8-10 Tons/hr |
| Top Screen (L x B) | 760 x 595mm, 1 No. | 1000 x 600mm,1 No. | 1000 x 800mm,1 No. | 1000 x 1250mm,1 No. |
| Middle Screen (L x B) | 700 x 595mm, 2 No. | 1000 x 600mm,2 No. | 1000 x 800mm,2 No. | 1000 x 1250mm,2 No. |
| Bottom Screen (L x B) | 700 x 595mm, 2 No. | 1000 x 600mm,2 No. | 1000 x 800mm,2 No. | 1000 x 1250mm,2 No. |
| Blower Motor | 2HP | 5HP | 5HP | 7.5HP |
| Sieve Boat Motor | 1HP | 1.5HP | 1.5HP | 2HP |
| Light Impurities Collection system | By auger | By auger | By auger | By auger |
| Sieve Boat | Compressed Plywood | Compressed Plywood | Compressed Plywood | Compressed Plywood |
| Screen travelling TH | 3500mm | 5000mm | 5000mm | 5000mm |
IPC-2 = Indosaw Pre Cleaner 2m2 Screen Area, IPC-3 = Indosaw Pre Cleaner 3m2 Screen Area, IPC-4 = Indosaw Pre Cleaner 4m2 Screen Area, IPC-6.25 = Indosaw Pre Cleaner 6.25m2 Screen Area

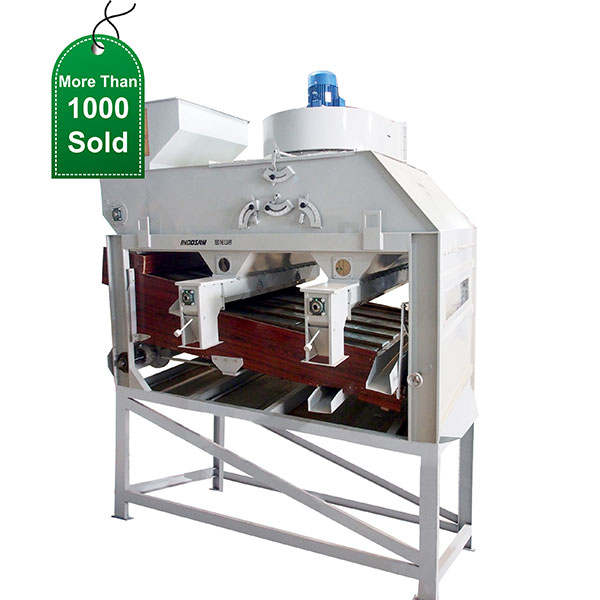

Seed/Grain Fine Cleaner
Item Code : IFC-2.9
Description:
Fine Cleaner ( Air Screen Cleaner) is very important machine in the seed processing plant. Fine cleaner machine cleans and grades the seeds very minutely to get finally good cleaned and graded seeds. The seeds are divided in to many grades and one can collect different grade seeds separately. Fine cleaner is the heart of any seed processing plant. Fine cleaner uses aerodynamics to separate light impurities like chaff, dust, light seeds, gloom, broken seeds by strong steam of air passing across the seeds flow from feeding hopper to screens. The grading is done on weight , shape and mainly size basis. Indosaw Fine Cleaner machine has many special features like three screen layers, top mounted blower, wooden deck, structurally sturdy and strong, low noise, low vibration and screw conveyor to collect the impurities from Air Chamber.
The Fine cleaner machine is fabricated with use of CNC machine for cutting, bending and shaping as a result there is high precision in machine operational performance. The machine is painted with two coats of red oxide for rust proof and two coats of anamal paint for long life and durability and aesthetics.
- Three screen layers for better cleaning.
- Use of CNC machine for fabrication of all sheet metal components.
- Sieve boad made of compressed plywood that absorb very well.
- Effective screen cleaning by bouncing rubber balls system.
- Less maintenance due to structurally stable machine.
- Seeds/grains are separated in five different categories i.e. Light Impurities, Heavy Impurities, Dust, Undersize Impurities & graded good seeds/grains.
- Auger takes out light impurities smoothly without blower suction loss.
- Soft wooden sieve deck and screen frame handle seed gently and smoothly.
- Pre and Fine aspiration collection separate for better cleaning control.
| Model | IFC-2.9 | IFC-4.4 | IFC-5.6 | IFC-8.3 |
| Capacity (wheat basis) | 1 Ton/hr | 2 Tons/hr | 3 Tons/hr | 4-5 Tons/hr |
| Top Screen (L x B) | 700 x 515mm, 1 No. | 800 x 800,1 No. | 800 x 1000, 1 No. | 800 x 1500, 1 No. |
| Middle Screen (L x B) | 700 x 515, 3 No. | 800 x 800,3 No. | 800 x 1000, 3 No. | 800 x 1500, 3 No. |
| Bottom Screen (L x B) | 700 x 515, 3 No. | 800 x 800,3 No. | 800 x 1000, 3 No. | 800 x 1500, 3 No. |
| Blower Motor | 3HP | 5HP | 7.5HP | 7.5HP |
| Sieve Boat Motor | 1HP | 1.5HP | 2HP | 2HP |
| Light Impurities Collection system | By augers | By augers | By augers | By augers |
| Sieve Boat | Compressed Plywood | Compressed Plywood | Compressed Plywood | Compressed Plywood |
| Screen travelling TH | 4900mm | 5600mm | 5600mm | 5600mm |
IFC-2.9 = Indosaw Fine Cleaner 2.9m2 Screen Area, IFC-4.4 = Indosaw Fine Cleaner 4.4m2 Screen Area, IFC-5.6 = Indosaw Fine Cleaner 5.6m2 Screen Area, IFC-8.3 = Indosaw Fine Cleaner 8.3m2 Screen Area,

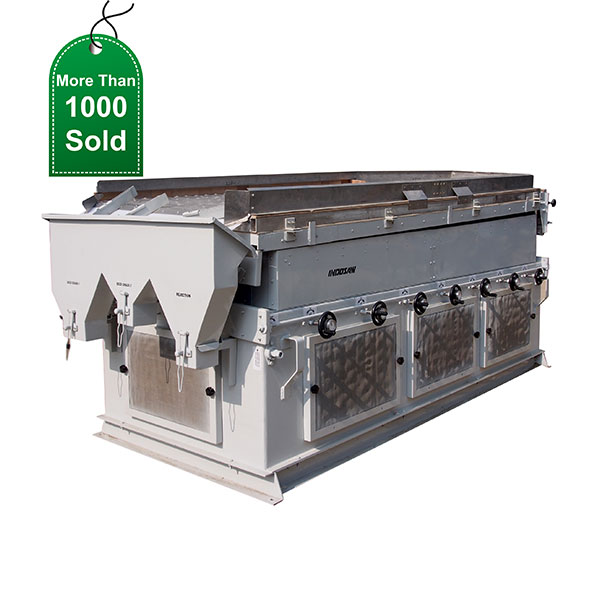

Gravity Separator
Item Code : ISG-3
Description:
It is a very important machine to separate seeds or grains of the same size but having difference in density/weight. This machine is important in most of the seed processing plant to separate cleaned seeds on Pre Cleaner and Fine Cleaner machines but havig difference in density or weight of seeds. . Fluidized bed of seeds/grain forms on the perforated deck with air blowing from the bottom air blowers separates seed/grain in mainly three grades light, medium and bold seeds. There are main five adjustments in the Gravity Separator machine Feeding, Air volume, End Angle of Deck, Side angle of Deck, and oscillation of deck. These five adjustment togather has to be set right to get precise separation on the basis of weight of different grades of The deck vibration is controlled by a variable frequency AC drive with an AC moto to accurately separate the heavy seed from the light seed.
Indosaw Gravity Separator has very special features in like seaprate fans and its air control, light weight perofarated deck made or wood/steel/stianless steel/Alluminum metal frame, CNC machine fabrication, light weight, low noise and strardy strong machine.
- Light weight wooden & steel deck.
- CNC fabrication of all sheet metal components.
- Easily interchangeable rectangular, deck for variety of crops and accuracy .
- Adjustable inclination of deck laterally and longitudinally.
- Five different types of output samples based on their density are collected through separate outlets.
- Eccentric speed can be regulated, which is useful for different type of seeds.
- VFD controlled for the suitable deck movement.
| Model | ISG-3 | ISG-5 | ISG-7 |
| Capacity (Wheat basis) | 1 Ton/hr | 2 Ton/hr | 4-5 Ton/hr |
| No. of Fans | 03 | 05 | 07 |
| Electric Drive | 5 HP | 10 HP | 15 HP |
| Deck Size | 760 x 1525mm | 1065 x 2285mm | 1200 x 3000mm |
| Fabrication | CNC punching | CNC punching | CNC punching |
| Deck Inclination | Adjustable | Adjustable | Adjustable |
| Deck Speed | Adjustable | Adjustable | Adjustable |
| Deck Wire | Stainless steel | Stainless steel | Stainless steel |
ISG-3 = Indosaw Specific Gravity 3 Fan, ISG-5 = Indosaw Specific Gravity 5 Fan, ISG-7 = Indosaw Specific Gravity 7 Fan
Indented Cylinder
Item Code : S8261
Description:
About: Since 1993, we have been manufacturing
Construction: These
- Auger and trough are provided to collect and carry out broken or short length seeds easily.
- Fine trough adjustment for good separation.
| Model | S8261 | S8262 | S8262-B | S8263 | S8264 |
| Capacity (wheat basis) | 1Ton/hr | 2Tons/hr | 3Tons/hr | 4Tons/hr | 5Tons/hr |
| Motor (3 phase 440V) | 01HP | 2HP | 2HP | 3HP | 3HP |
| Cut/Short Seeds Outlet | By auger | By auger | By auger | By auger | By auger |

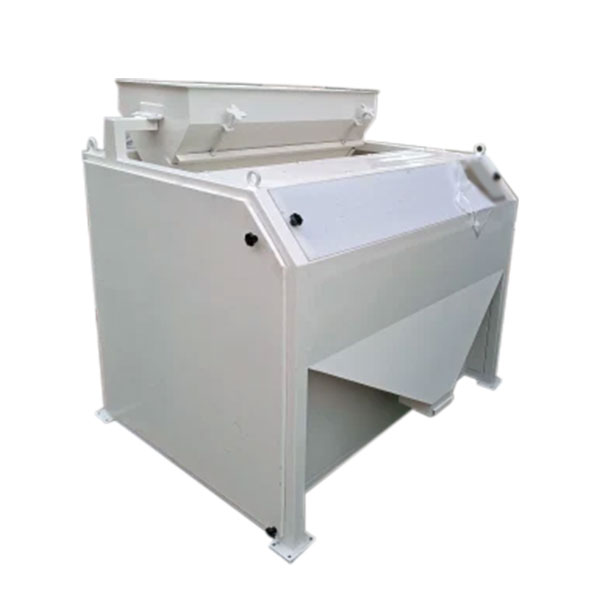

Destoner
Item Code : S8131
Description:
About: Since 1993, we have been manufacturing
Construction: These
- Universal model suitable for almost all free flowing crops.
| Model | 8131 | 8127 | 2868 |
| Capacity (wheat basis) | 2-3 Ton/hr | 4-5 Ton/hr | 7-8 Ton/hr |
| Screen Width | 950mm | 1050mm | 1200mm |
| Vibro Motors | 0.5HP- 2No. | 0.5HP- 2No. | 0.5HP- 2No. |
| Blower | 7.5HP | 10HP | 12.5HP |
| Accessories | Cyclone | Cyclone | Cyclone |
