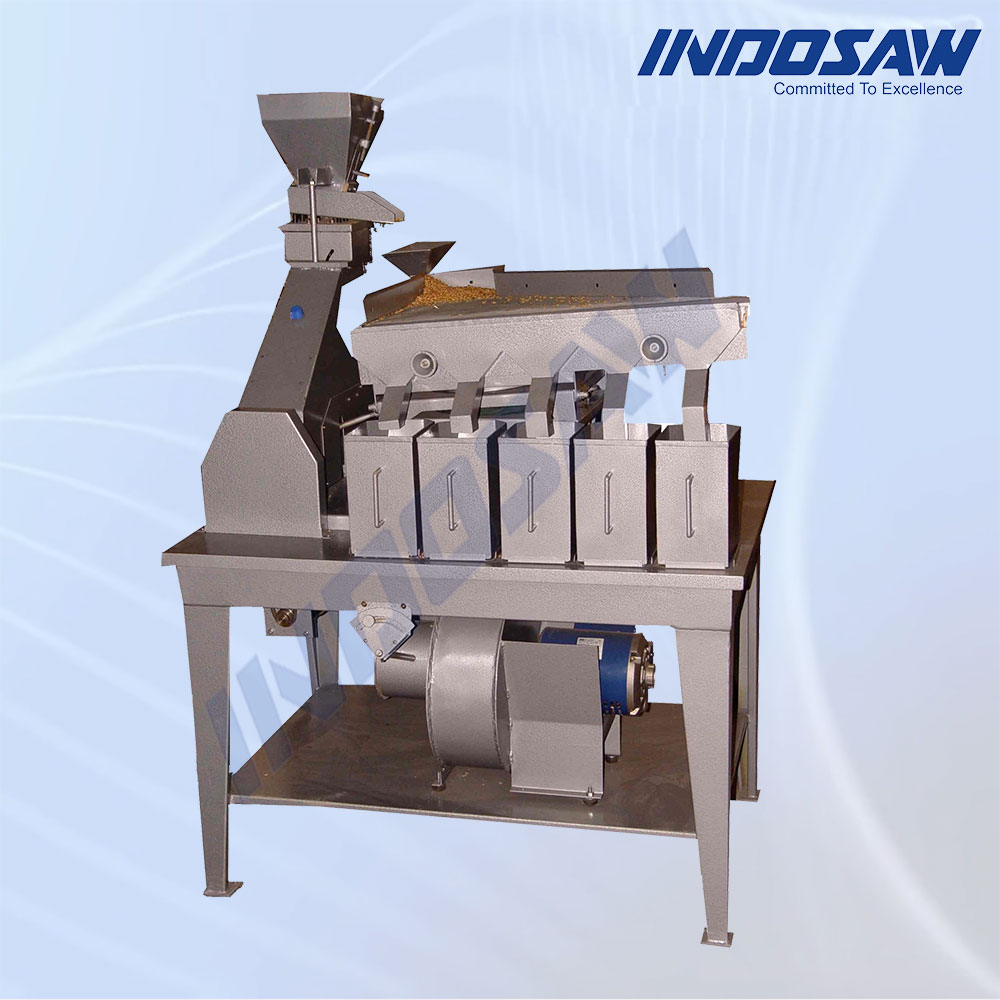

Gravity Separator
Item Code : 6838
Description:
The machine separates seeds of similar size based on differences in their specific gravity. When specific gravity is nearly uniform, separation is achieved through size variation.
It features a feed hopper, adjustable deck alignment, and a control panel to operate key components including the power socket, blower, cradle, and seed flow switch. Airflow is precisely regulated using a graduated scale, and a deck drive allows for adjustment of vibration intensity.
The sorted grains are collected in five pans—starting with the heaviest grains in the first pan, followed by progressively lighter grains in the remaining pans.
- Eccentric speed can be regulated, which is useful for different type of seeds using V.F.D.
- Five different types of output samples based on their density are collected in separate containers.
- Easly interchangeable deck, which helps in changing the deck with different types of sieves without consuming time.
| Cleaning capacity | : 100 kg/hr (based on wheat) |
| Construction | : CNC processed component used for long life and better accuracy. |
| Dimension | : 1100 x 700 x 1550 mm (L x W x H) approx. |
| Motor for blower | : 1HP, 2810 RPM, single phase. |
| Motor for vibrating deck | : 90W, 1440RPM, single phase. |
| Operating voltage | : 220V, 50Hz, single phase AC. |
| Output | : Five different types of sample can be collected according to their density. |
| Speed regulation | : Eccentric speed can be regulated, which is useful for different type of seeds. |
| Vibration | : Vibration resistant deck design. |
| Interchangeable deck | : Easly interchangeable deck, which helps in changing the deck with different types of sieves without consuming time. |
| Suitable | : Suitable for all types of seeds. |
Seed/Grain
This machine is suitable for all types of free-flowing grains, including:
- Wheat, Rice/Paddy, Maize(Corn), Barley, Oats, Sorghum, Chickpeas, Pigeon Peas , Arhar/Tur), Green Gram(Moong), Lentils, Soybeans
General Uses of Lab Model Gravity Separator
- Laboratory analysis and small-scale testing.
- Seed certification and R&D.
- Training and educational purposes.
- Quality control in breeding stations and seed labs.
