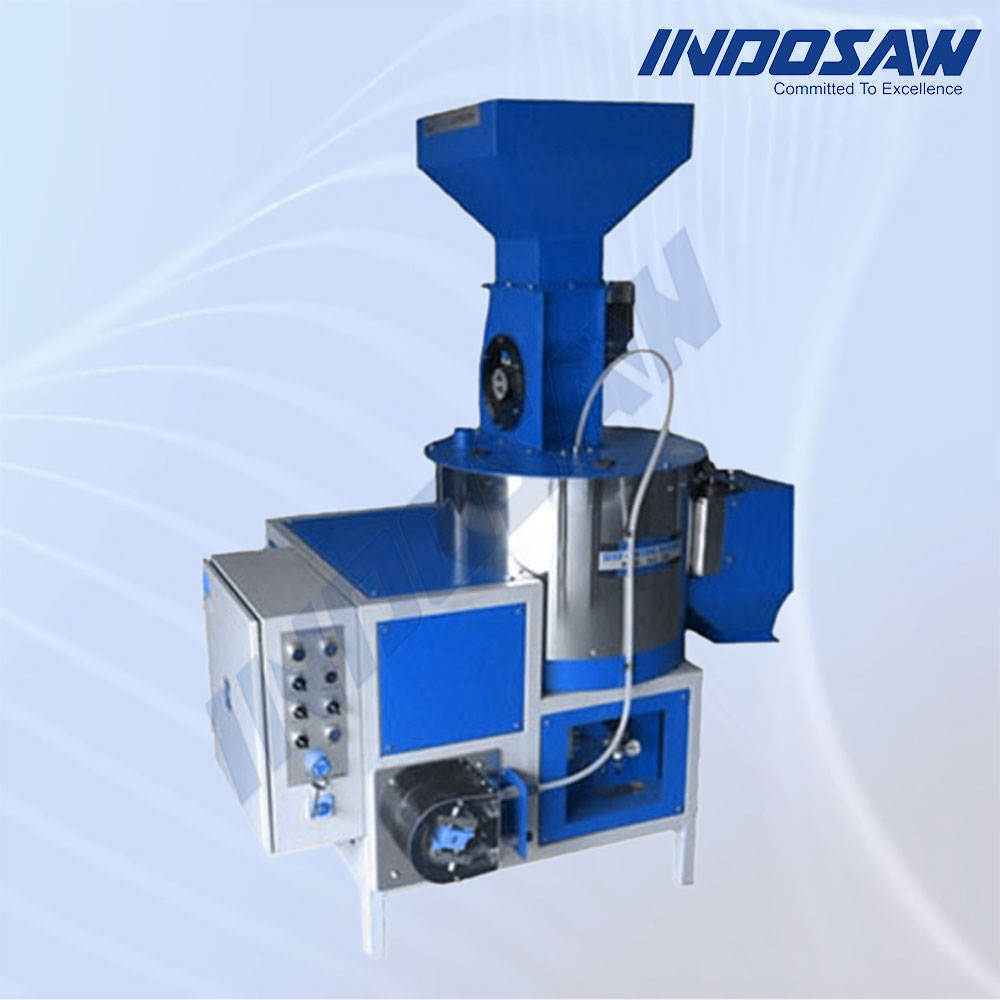

Mist-O-Matic Seed Treater
Item Code : 8255A
Description:
The Mist-O-Matic Seed Treater is an advanced, high-performance machine engineered to deliver chemical or biological treatments to seeds using a fine mist spray, ensuring a consistent and even coating on every seed. Its precise misting system helps reduce chemical usage, minimize seed damage, and provides effective protection against fungal diseases, pests, and storage-related threats.
Designed for medium to large-scale seed processing, the treater is compatible with a wide range of seed types—such as cereals, pulses, oilseeds, and vegetables. It ensures uniform treatment distribution, regardless of the seed’s size or shape.
Salient Features
Specifications
Salient Features
- Mist-o-rnatic Seed Treater cum Seed Coating Machine with Rotostat technology complete with peristaltic pump and slurry tank of stainless-steel, energy efficient motor make Crompton/ Kirloskar/ Texmo/ SEW Euro Drive, variable speed power flex drive make Allen Bradely/ Mitsubishi/ Siemens /Crompton/ SEW EURO DRIVE in lieu of motor starter, Foundation Nut and bolts. Treater based on ROTOSTATT technology Capacity 2 TPH. and including the following.
Specifications
Main Components:
- Seed Measuring and Feeding Unit:
- Hopper Capacity : 100 kg (depends on seed size and density)
- Level is controlled by a “High accurate precision Sensor”.
- Machine housing with rubber or PU moulded Peddler is used for accurate feeding and to eliminate any possibility of seed damaged during feeding.
- High precision Geared Motor for Peddler movement.
Main Disc and Shell :
- Cast steel and machined disc.
- Shell size :200 x 160 mm (D x H).
- Top surface of the disc has to be Rubberized (PU coating). Perfect angle matching between Main disc and base. To prevent seeds accumulation at this zone and damages to the seeds.
- Less than 0.5 mm gap on radius of the base and disc.
- Dual seal protection for bearing to prevent any chemical entering in to the bearing housing.
- Motor for disc rotation peristaltic pump.
- SS 304 Shell for long life.
- Auto Dump gate
- Equipped with Pneumatic cylinder for opening and closing of the gate- Upon completion
- Treatment gate should open automatically to send the seed out of the machine.
- Perfect matching with the shell with absolutely no gaps.
- Peristaltic pump.
- Designed for accurate dosing.
- No leakages whatsoever. Extra chemical pipes to be provided as spare — 2 Nos. along with machine.
- Designed in such way to avoid any back flow.
- VFD drive and times to control the chemical dosage in terms of quantity and dosage time
- Geared motordrive for pumping.
- Control Panel
- Separate automatic control panel
- Programmable Logic Controller (PLC) with built timers to set the quantity of seed and Chemical.
- Operator friendly timer setting- Operator can change the settings based on requirement.
- Chemical Mixing Tank
- Tank capacity : 50 Liters
- SS Tank
- Continuous slurry mixing arrangement.
- Geared motor for mixer.
- Power supply : 3 Phase, 415V, 50Hz
- Connected Load : 1.5 to 3 HP
- Air Supply : 5-6 Kgf
- Starter & Switches : L&T/ Siemens
- Load Cell : 01vIRON/SensotroniciArtech
- FD Drives : Mitsubishi/ Siemens
- sensors & Relays : Ornron
- Contactors : Siemens
- Pneumatics : Festo
- Geared Motors: Bonfiglioli, Italy/ any other standard company Frame : Tubular construction – in house.
- Shell material : SS 304 for long life.
