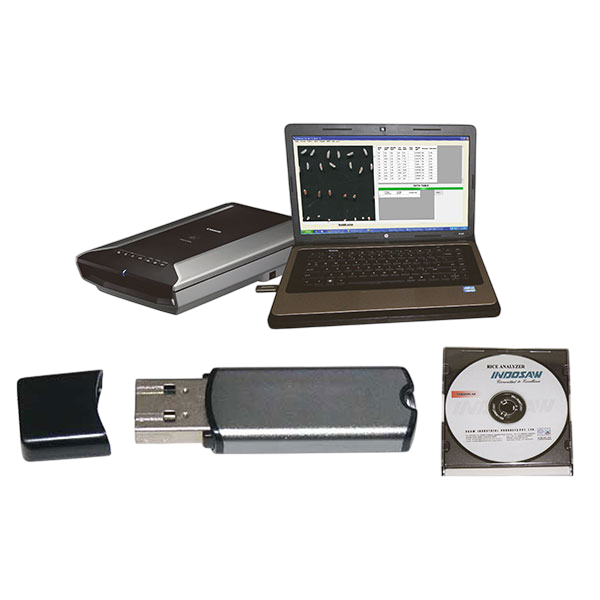

Seed/ Grain Analyzer Single Side Scanner Based
Item Code : S6829
Description:
General Overview
The Seed/Grain Analyzer offers a convenient and efficient way to measure rice grain color and dimensions without requiring specialized skills. It operates automatically, generating results without the need for manual intervention and storing data for ongoing record-keeping. Utilizing advanced cluster separation algorithms, the INDOSAW Seed/Grain Analyzer assesses the morphological parameters of rice seeds from flatbed scanner images.
- Seed/Grain Analyzer: The system calculates key metrics such as length, breadth, L/B ratio, and Shape factor the area of each grain like Sorghum (Jowar), Bajara (Pearl Millet), Bengal Gram (Chana), Maize (Makka), Paddy (Dhan), Wheat (Gheu) and Pluses etc.
- It classifies grain into categories defined by the user, such as Head, Big Broken, Small Broken with shape factor parameters.
- Automated Rice Analysis Classification data is recorded in a database, enabling easy access and retrieval by rice grain names.
- It determines the weight of individual grains based on morphological parameters, either using the total weight of grains in the image or the weight of a thousand grains. This feature provides valuable insights into the weight distribution and quality of the grain.
Additional Features
For further analysis, the system provides graphical and textual outputs detailing the number of grains in each category and their specific parameters. The Seed Analyser software is protected with a USB dongle to ensure secure access.
Summary
In summary, the Grain Analyzer combines advanced technology with ease of use to provide a powerful tool for grain assessment, offering precise measurements, detailed classification, and secure data management.
- Quickly processes thousands of grains, minimizing manual work and enhancing efficiency.
- Captures detailed surface images from one side using high-resolution scanning.
- Evaluates grain dimensions and identifies flaws such as breakage or discoloration.
- Features user-friendly software with visual tools and easy report generation.
- Applies advanced imaging to distinguish grain types and detect unwanted elements.
- Generates comprehensive analysis reports with flexible export options like CSV, Excel, and PDF.
- Compact and lightweight design suitable for tabletop use and easy transport.
| Imaging Technology | High-resolution single side scanner (CCD/CMOS) |
| Scan Resolution | Typically ≥ 1200 dpi |
| Grain Analysis Capacity | 500–1500 grains per scan |
| Grain Parameters Measured | Length, breadth, L/B ratio, area, color |
| Detection Types | Whole, broken, chalky, immature, discolored, red, damage |
| Accuracy | > 95% for physical parameter measurement |
| User Interface | PC-based software with graphical interface |
| Data Output | Reports (Excel, CSV, PDF), graphical statistics |
| Power Supply | 230V AC, 50/60 Hz |
| Dimensions | Approx. 530mm × 530mm × 225mm |
| Weight | 5–10 kg |
| Operating System Support | Windows 10 or above |
| Connectivity | USB/HDMI/Ethernet |
Note:
- Computer and scanner are an optional. It will be supplied on customer’s demand.
- Beware of counterfeit and fake copies.
- Genuine window 10 (Beware of Pirated one) with a advanced technology.
