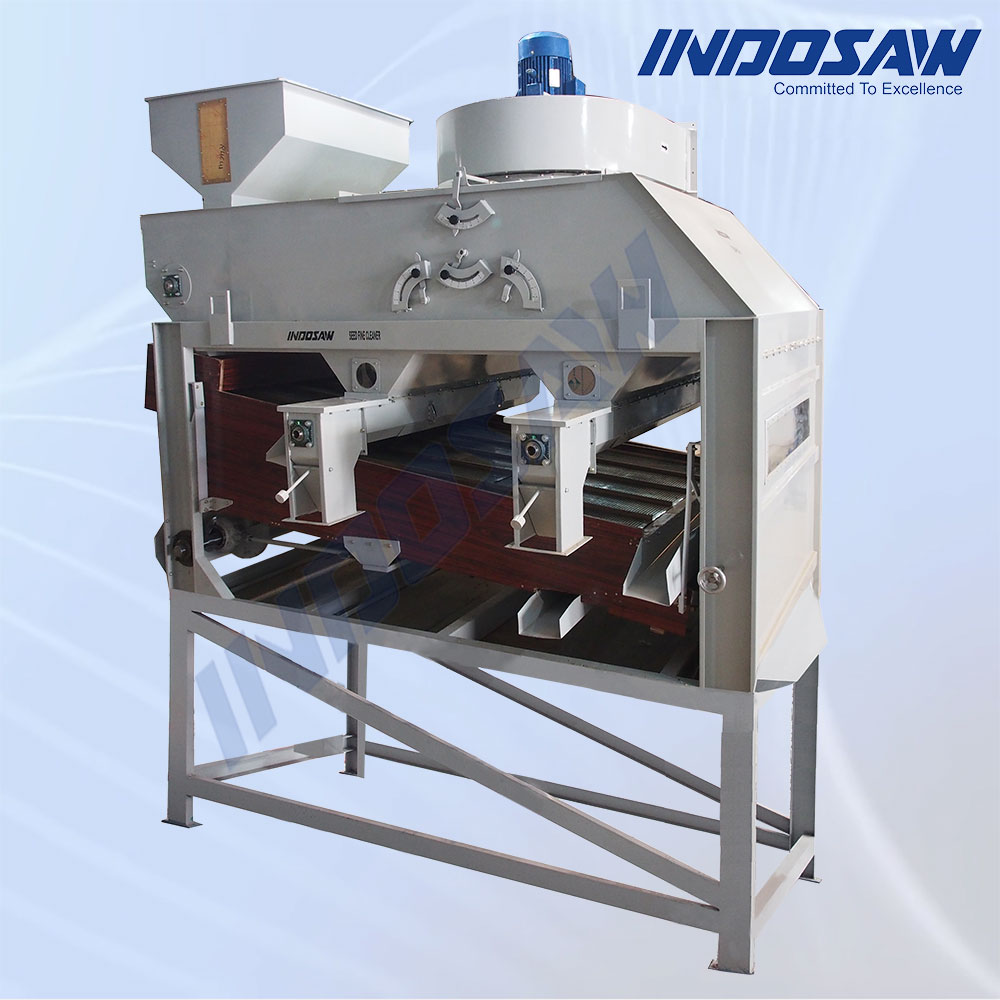

Seed/Grain Fine Cleaner
Description:

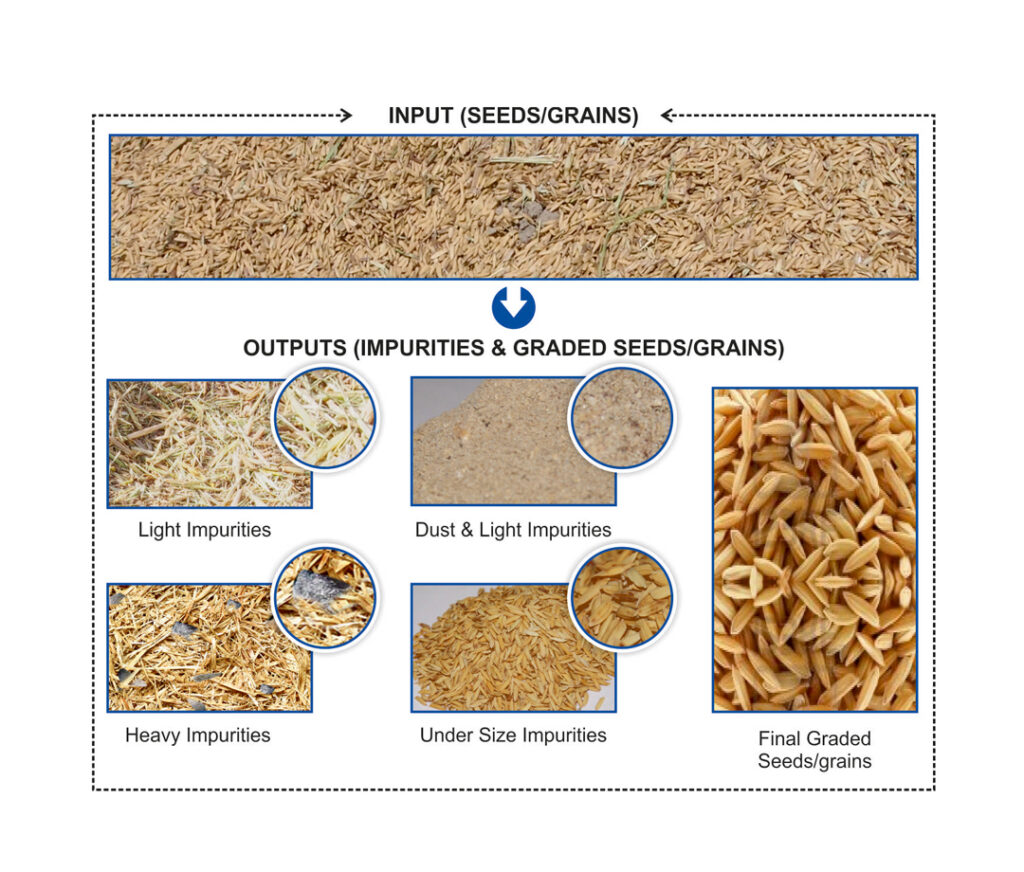

The Fine Cleaner, also known as an Air Screen Cleaner, is a critical machine in any seed processing plant. It performs precise cleaning and grading of seeds, ensuring the final output consists of thoroughly cleaned and accurately graded seeds. The machine separates seeds into multiple grades, allowing each to be collected separately.

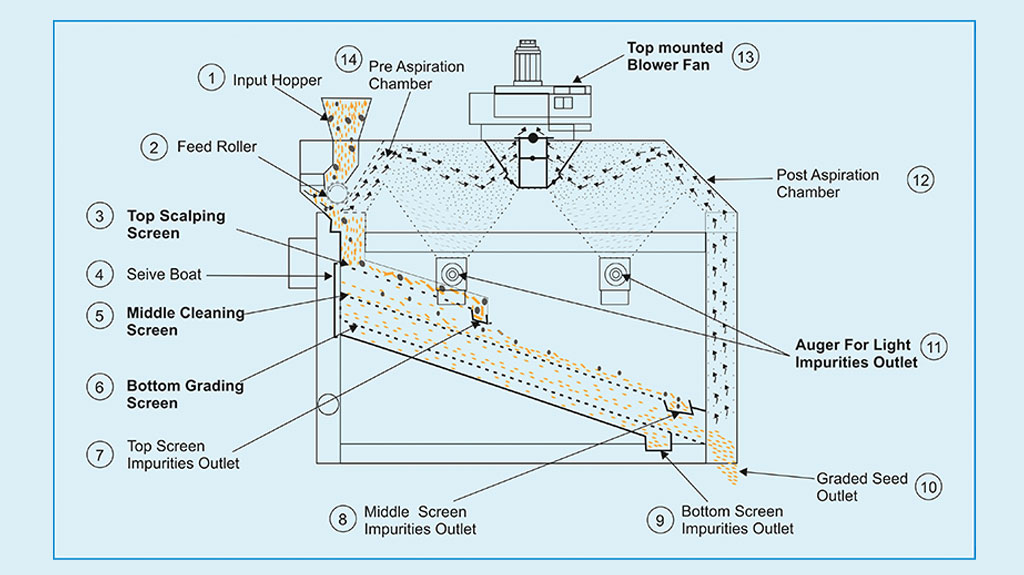

Functioning as the core component of a seed processing line, the Fine Cleaner operates on the principle of aerodynamic separation. A powerful stream of air flows across the seed stream—from the feeding hopper through the screens—to remove light impurities such as chaff, dust, glumes, broken seeds, and light or immature seeds.
Grading is primarily based on size, with additional consideration for shape and weight. The Indosaw Fine Cleaner is equipped with several key features:
- Three-layer screen system
- Top-mounted blower for effective air separation
- Laminated wooden deck for strength and durability
- Low noise and low vibration operation
- Screw conveyor for efficient impurity removal from the air chamber
- Structurally robust and sturdy design
The machine is CNC fabricated for precision in cutting, bending, and shaping, ensuring high performance and operational accuracy. It is finished with two coats of red oxide primer for rust protection, followed by two coats of enamel paint for enhanced durability and aesthetic appeal.
Sieve boat made of compressed plywood that absorb vibration very well.

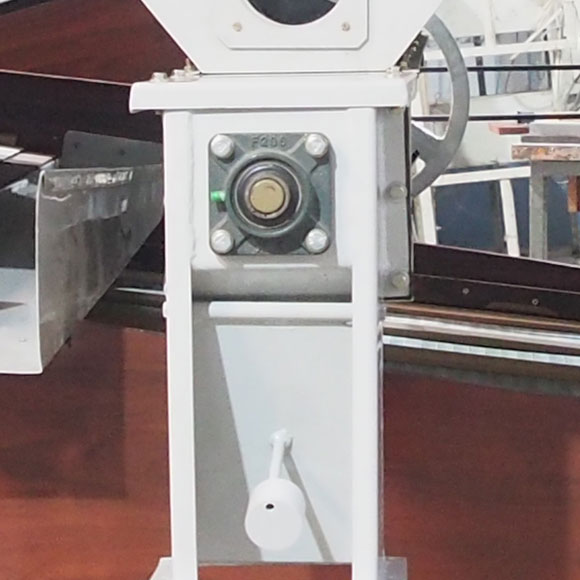

The auger smoothly removes light impurities without causing blower suction loss.
Use of CNC machine for fabrication of all sheet metal components.

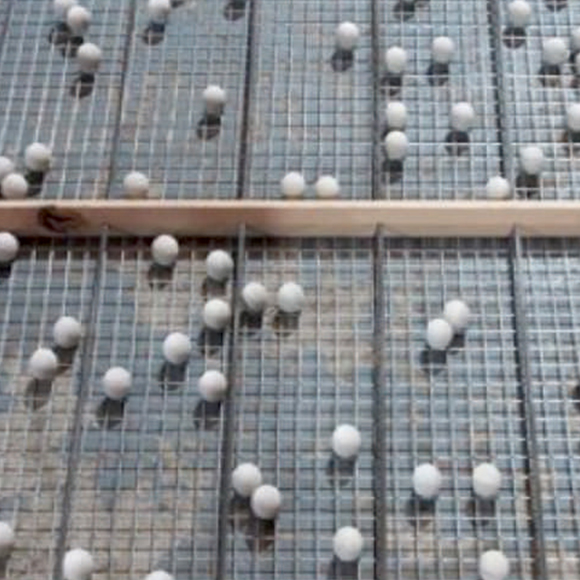

Effective screen cleaning by bouncing rubber balls system.
- Nuts and bolts of proper strength of good brands like TVS.
- Pre-aspiration and final aspiration with two augur’s.
- Three Screens : One scalping screen and Two grading screen.
- Top mounted blower given for more space in aspiration chamber
| Cat No. | S8247 | S8248 | S8248A | S8249A | S8250 | S8315 |
| Model | IFC-2.9 | IFC-4.4 | IFC-5.6 | IFC-7 | IFC-8.3 | IFC-14.4 |
| Capacity (on Wheat Basis) | 1TPH | 2 TPH | 3 TPH | 4 TPH | 5-6 TPH | 8-10 TPH |
| Screen Area | 2.9 m2 | 4.4 m2 | 5.6 m2 | 7 m2 | 8.3 m2 | 14.4 m2 |
| Top Screen (L x B) | 700 x 600mm | 800 x 800mm | 800 x 1250mm | 800x1000mm | 800 x 1500mm | 800 x 1500mm |
| Blower Motor | 3HP | 5HP | 7.5HP | 7.5HP | 7.5HP | 10HP |
| Sieve Boat Motor | 1HP | 1.5HP | 2HP | 2HP | 2HP | 3HP |
| Air volume (m3/hr) | 4500 | 5000 | 6500 | 8000 | 8000 | 10000 |
| No. of Rubber Balls/Machine | 350 pcs | 560 pcs | 840 pcs | 1120 pcs | 1050 pcs | 1800 pcs |
| Screen travelling length | 4900mm | 5600mm | 5600mm | 5600mm | 5600mm | 9600mm |
| Machine Ht. without fan | 1930 | 2007 | 2007 | 2007 | 2007 | 2835 |
| Machine Ht. with fan | 2726 | 2800 | 2870 | 2800 | 2870 | 3730 |
Grains & Seeds
Pre-cleaners are suitable for a wide range of free-flowing agricultural commodities, including:
- Wheat, Paddy (rice), Maize (corn), Barley, Pulses (such as chickpeas, lentils, and pigeon peas), Soybeans, Mustard, sunflower, and other oilseeds
Cleaning Functions
- Removal of oversized impurities (e.g., stones, leaves, pods)
- Separation of dust, chaff, husk particles
- Protects downstream machinery (dehusking, milling, sorting)
Industry Usage:
- Flour mills
- Rice and dal mills
- Seed processing plants
- Oilseed extraction units
- Grain storage facilities
