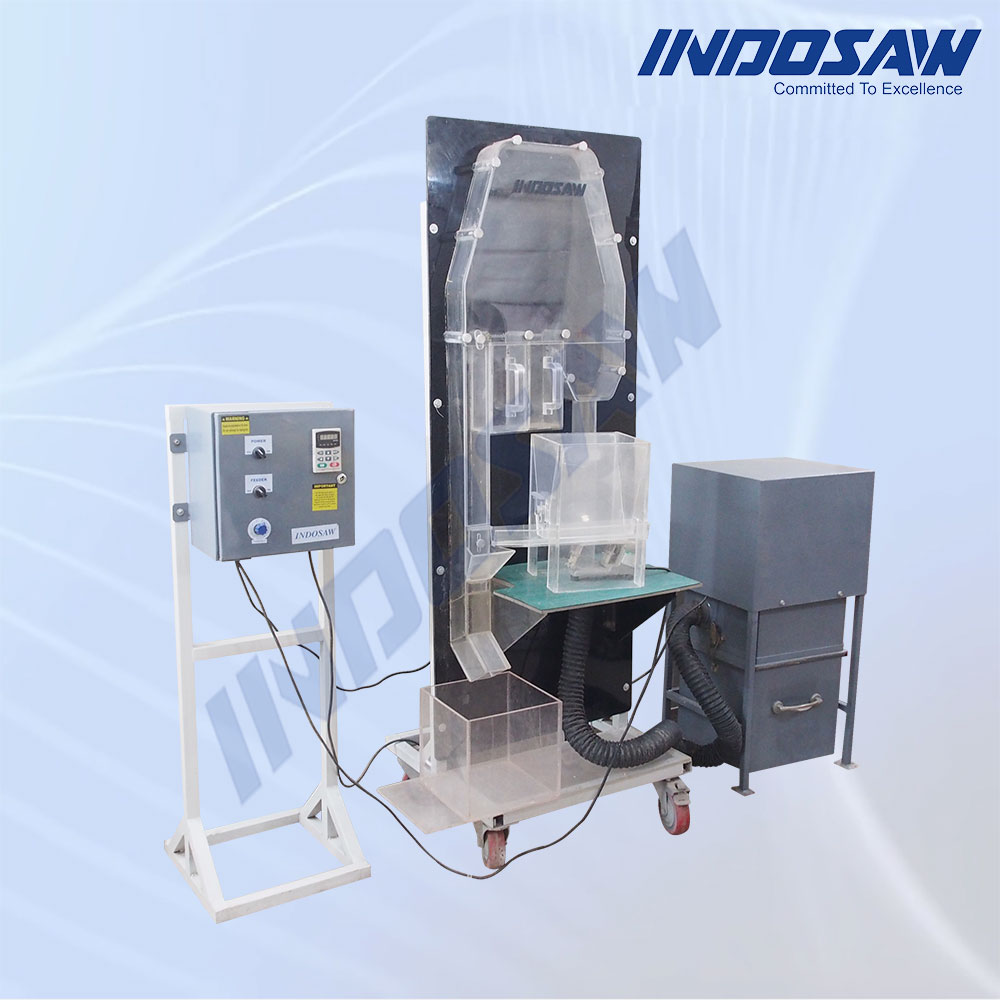

Wall Mount Air Seed Separator
Item Code : 8235
Description:
The Air Seed Separator is designed to remove less viable, immature, or underweight seeds from healthy seeds using a vacuum-based separation method, thereby improving the overall seed lot quality and germination rate.
1. Vibratory Feeder
The vibratory feeder regulates the seed feeding rate through electromagnetic vibrations. The feeder control knob is located on the control panel, along with a feeding layer control shutter to fine-tune the flow.
Operators can also adjust the column shutter for airflow control. It is recommended to note the settings during each run for future reference when processing the same commodity.
2. Vacuum Control
The vacuum control adjusts suction pressure based on the type of seed being processed. Vacuum strength is proportional to fan speed—higher speed generates more vacuum.
Vacuum regulation is managed via a VFD (Variable Frequency Drive) located on the panel, which adjusts the frequency of the fan motor to control its speed and thus the vacuum pressure. The VFD reading should be recorded for repeatability when running the same commodity in the future.
- Digital electronic drive enables precise airflow control, tailored to different seed types for effective and fine cleaning.
- Minimal risk of seed contamination ensures improved output quality.
- Smooth acrylic surfaces reduce the chance of seed damage during processing.
- Simplified design with fewer moving parts ensures low maintenance and greater reliability.
- Transparent acrylic panels provide full visibility of seed flow and separation.
- Designed for maximum seed recovery and efficiency.
- Integrated electromagnetic vibratory feeder allows for steady and controlled seed feeding.
| Capacity | 25–30 kg/hour (varies by seed type and density) |
| Application | Separation of light impurities from vegetable seeds, flower seeds, and small grains |
| Mounting Type | Wall-mounted (space-saving vertical design) |
| Air Control | Digital electronic drive for precise airflow adjustment |
| Separation Method | Air aspiration/vacuum separation |
| Vacuum Adjustment | VFD (Variable Frequency Drive) controlled fan |
| Feed System | Electromagnetic vibratory feeder |
| Visibility | Transparent acrylic seed flow column for monitoring |
| Material | Powder-coated steel frame with acrylic sheets column. |
| Power Requirement | 230V AC, 50 Hz, single phase |
| Weight (Approx.) | 35–40 kg approx. |
Seed/Grain
This machine is suitable for all types of free-flowing grains, including:
- Wheat, Rice/Paddy, Maize(Corn), Barley, Oats, Sorghum, Chickpeas, Pigeon Peas , Arhar/Tur), Green Gram(Moong), Lentils, Soybeans
General Uses of Lab Model Gravity Separator
- Laboratory analysis and small-scale testing.
- Seed certification and R&D.
- Training and educational purposes.
- Quality control in breeding stations and seed labs.
